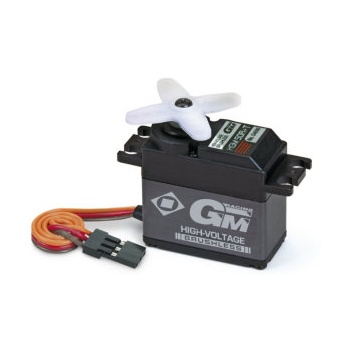

Servo brushless Graupner HGM SOR + T BB MG 20 mm
Perfect for On- and Offroad RC Cars 1:8
The HGM SOR+T BB MG servo is a SUMD-V2 telemetry servo for the transmission of data such as current consumption in bar form and max. Current consumption in A, position (angle in degrees) and wear indication.
The servo can be adjusted through the telemetry menu similar to the servo software, e.g. Dead band, trimming, direction of rotation, acceleration, etc.
The servo can either be used with SUMD-V2 or the normal transmission modes.
The remote controls X-8N and X-8E support the SUMD-V2 system.
(Compatible with Sanwa High and Super Response)
Suitable for 1:8 On and Off-road
SUMD-V2 telemetry servo
Parameters can be set by telemetry
High-voltage, operating voltage up to 8.4 V!
Direct operation with 2-cell LiPo batteries
Operating voltage range 4.8 ... 8.4 V
Housing central part made of aluminium
2 x ball bearing
GM High-Voltage Brushless Servo (HGM) The new HGM servos (GM high-voltage brushless servos) have been developed specifically for the particular requirements in the car area. They combine the performance of brushless technology with all the advantages of high-voltage servos. In addition to the unparalleled acceleration, greater efficiency, and no wear of carbon brushes, these servos can be supplied with an operating voltage of up to 8.4V. Direct connection of 2-cell LiPo battery packs is now possible with no problem; in addition, these servos also provide top performance at an operating voltage of just 6V. Precision in manufacturing and assembly as well as the very best component quality make uncompromising power and speed available to the servo mechanism. A new dimension in the combination of power, speed,acceleration, precision, and resolution.
Width [mm]: 20 mm
Holding torque 6.0V, approx. [Ncm]: 220 Ncm
Height [mm]: 40,5 mm
Transit speed at 6.0 V, approx. [Sek / 40°] : 0,075 Sek/40°
Weight [g]: 67 g
Angular travel incl. trim, approx. : 2 x 45 °
Transit speed at 7.4 V, approx. [Sek / 40°]: 0,06 Sek/40°
No-load current drain, approx. [mA] : 37 mA
Torque at 6.0 V, approx. [Ncm]: 105 Ncm
Holding torque 7.4V, approx. [Ncm]: 255 Ncm
Overall length [mm]: 40 mm
Current consumption at 6.0V approx. [mA]: 2320 mA
Dimensions [LxWxH in mm]: 40 x 20 x 40,4 mm
Torque at 7.4 V, approx. [Ncm] : 125 Ncm
Bearings: 2 Ball-Bearing
Replacement gearbox: 94052.2
Current consumption of 7.4 V approx. [mA]: 2930 mA
Gear unit: Metal
Operating voltage neutral [V] : 4,8 ... 8,4 V
Neutral impulse: 1,5 ms
Max. operating frequency [ms / Hz]: 2,5 / 400 ms / Hz
Field of application: Car
Servo type: digital
